Product Description

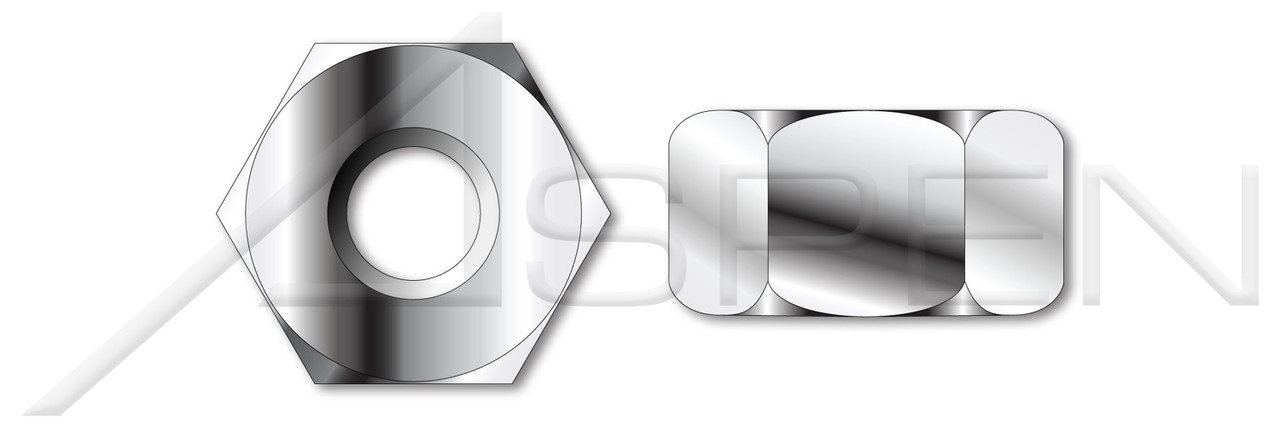

- Heavy hex nuts are thicker and have a larger across flats as compared to regular nuts.
- 18-8 stainless steel is functionally interchangeable with type 304 stainless steel.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): 1-1/4"
- Thread Pitch: 12
- Diameter (Dimension): 1.25"
- Thread Length (Nominal): 1.219"
- Across Flats (Basic): 2"
- Across Flats (Minimum): 1.938"
- Across Flats (Maximum): 2"
- Height (Basic): 1-7/32"
- Height (Minimum): 1.187"
- Height (Maximum): 1.251"
- Category: Hex Heavy Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Stainless Steel
- Material Grade: 18-8 Stainless Steel
- Coating: Uncoated
- Origin: Origin Undefined
- Standards and Specifications: ASME B18.2.2 and SAE J995
Product Videos
Custom Field
Across Flats (Basic) 2"
Across Flats (Maximum) 2"
Across Flats (Minimum) 1.938"
Brand Aspen Fasteners
Category Hex Heavy Nuts
Coating Uncoated
Diameter (Dimension) 1.25"
Diameter (Nominal) 1-1/4"
Drive Style External Hex Drive
Height (Basic) 1-7/32"
Height (Maximum) 1.251"
Height (Minimum) 1.187"
Material Stainless Steel
Material Grade 18-8 Stainless Steel
Order Nuts
Origin Origin Undefined
POS ST013-11412-000007
Product Class Internally Threaded Fasteners
Standards and Specifications ASME B18.2.2 and SAE J995
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 1.219"
Thread Pitch 12
