Product Description

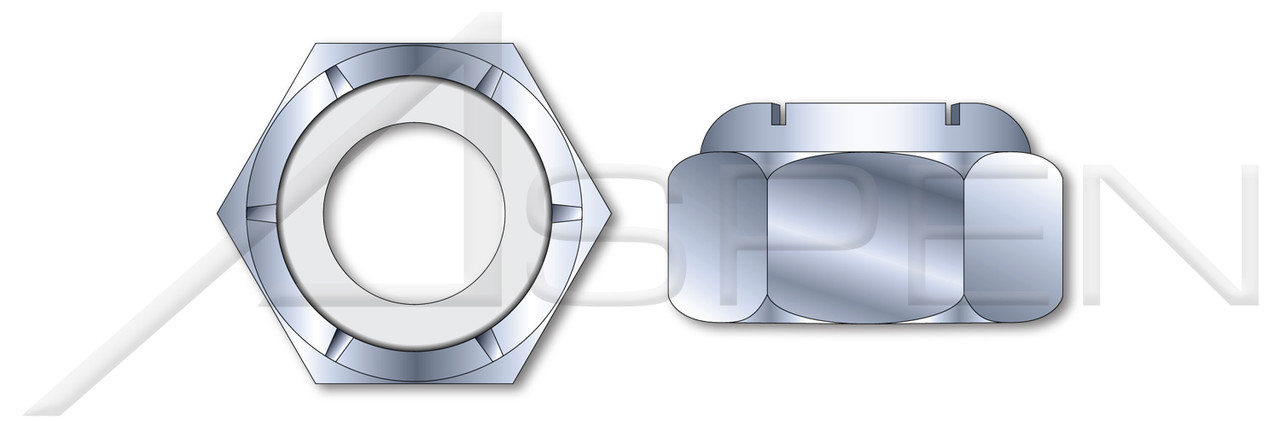

- Also known as elastic stop nuts, this self locking nut uses a nylon collar that resists turning.
- The nylon insert collar retains its locking ability up to 250 degrees F (121 degrees C).
- Proof load 90,000 psi. minimum.
- Diameter (Nominal): 1-1/2"
- Thread Pitch: 6
- Diameter (Dimension): 1.5"
- Thread Length (Nominal): 1.313"
- Across Flats (Basic): 2-3/16"
- Across Flats (Minimum): 2.159"
- Across Flats (Maximum): 2.197"
- Height (Basic): 1.64"
- Height (Minimum): 1.578"
- Height (Maximum): 1.64"
- Category: Hex Nylon Insert Stop Lock Nuts
- System of Measurement: Inch
- Brand: Aspen Fasteners
- Drive Style: External Hex Drive
- Thread Length: Full Thread
- Thread Direction: Right-Hand Thread
- Material: Steel
- Material Grade: Low Carbon Steel
- Coating: Zinc Plated
- Coating Color: Clear
- Origin: Origin Undefined
- Standards and Specifications: NM and NE Standard Series
Product Videos
Custom Field
Across Flats (Basic) 2-3/16"
Across Flats (Maximum) 2.197"
Across Flats (Minimum) 2.159"
Brand Aspen Fasteners
Category Hex Nylon Insert Stop Lock Nuts
Coating Zinc Plated
Coating Color Clear
Diameter (Dimension) 1.5"
Diameter (Nominal) 1-1/2"
Drive Style External Hex Drive
Height (Basic) 1.64"
Height (Maximum) 1.64"
Height (Minimum) 1.578"
Material Steel
Material Grade Low Carbon Steel
Order Lock Nuts
Origin Origin Undefined
POS NU080-1126-000016,NU080-1126-000008,NU080-1126X13964X2316-000040
Product Class Internally Threaded Fasteners
Standards and Specifications NM and NE Standard Series
System of Measurement Inch
Thread Direction Right-Hand Thread
Thread Length Full Thread
Thread Length (Nominal) 1.313"
Thread Pitch 6
