Product Description

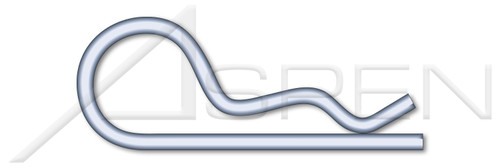

- Bridge pins are also known as R-clips, R-pins, R-keys or hitch pin clips.
- Used to secure the ends of axles, hitch pins or clevis pins by being inserted into a hole or groove.
- Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.
- Stainless steel significantly improves resistance to tarnishing or corrosion.
- Diameter (Nominal): 0.047"
- Diameter (Dimension): 0.047"
- Length (Nominal): 19/32"
- Wire Diameter: 0.047"
- Hole Diameter: 1/16"
- Shaft Diameter (Minimum): 1/8"
- Shaft Diameter (Maximum): 3/16"
- Inside Diameter of Eye: 1/8"
- Product Class: Pins and Wireforms
- Order: Pin Clips
- Category: Bridge Pins
- System of Measurement: US Units
- Brand: Aspen Fasteners®
- Form and Design: R-Clip Form
- Material: Stainless Steel
- Material Grade: AISI 304 Stainless Steel (18-8)
- Coating: Uncoated
- NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Product Videos
Custom Field
Coating Process Uncoated
Length 19/32"
Diameter/Pitch 0.047"
System of Measurement US Units
Material AISI 304 Stainless Steel (18-8)
Category Bridge Pins
